Pinball and Arcade Resettable Fuse Breaker Kit
Stop throwing away money and blowing fuses!
$45.00$39.99
These are great tools when troubleshooting blown fuses in arcades and pinballs. Instead of continuously blowing fuses (and wasting money) the circuit will simply trip and you can continue trouble shooting with a simple click of the button.
Instructions: Replace a “fast- blow” fuse in your pinball machine with a Fuse Circuit Breaker that is 1-2 amps lower. For example, if a 5 Amp fast-blow fuse is blown, use a 3 or 4 Amp Fuse Circuit Breaker.
When replacing a “slow-blow” fuse, you can use the same valued Fuse Circuit Breaker (10 amp Slow Blow fuse to a 10 amp Fuse Breaker).
After a Fuse Circuit Breaker has blown, wait 30-60 seconds until the breaker naturally resets (you'll hear a click sound and then be able to press the "reset" button to continue testing).

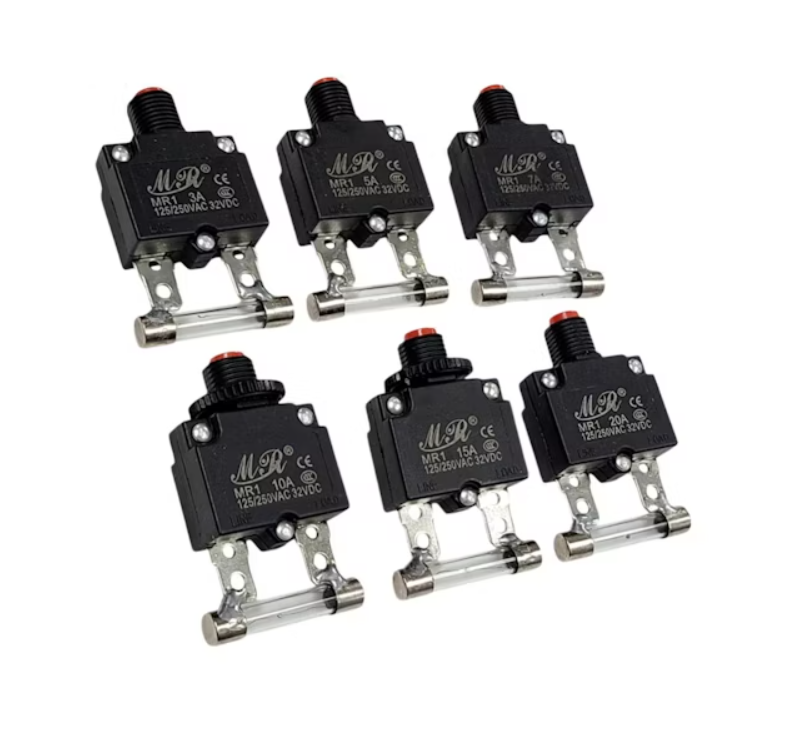

The Complete Kits come with the following amperages: 3A, 5A, 7A, 10A, 15A, and 20A
If you purchase the UNSOLDERED KIT, you solder the fuses (included) onto the breakers yourself. We recommend using flux on the breaker and fuses before soldering to ensure the solder binds well.
Note: These circuit breakers are not meant to replace fuses long-term. This is meant to be used as a tool to help trouble- shoot.

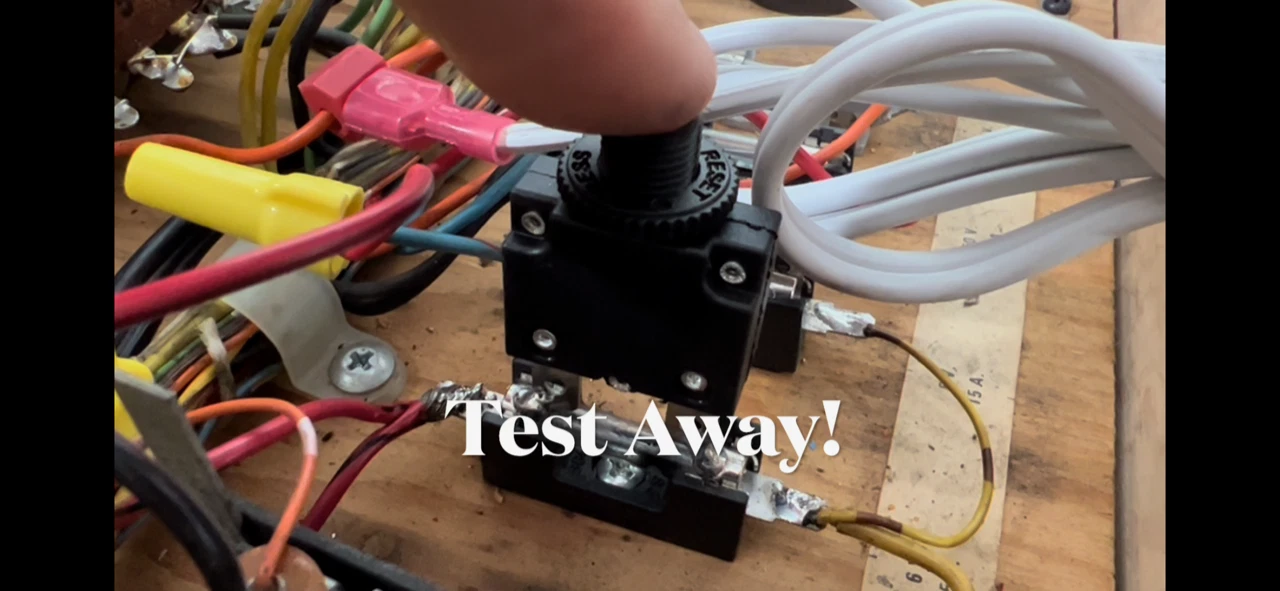

Pro TIP: Need to put these in a hard to reach fuse holder or test smaller fuses? Attach alligator clips to circuit breaker terminals and clip the other ends to the fuse holder you're trying to test.
